70 Series - HC7630
  • Electrical type: AC 220V/50Hz single phase
  • Appliance: coffee maker
  • Construction: Universal
  • Rotation: Clockwise
  • Thermal protection: 105/95/85 Degree
  • Insulating class: B
  • Shaft: stainless steel #470

Model No.
Rated Power Supply
Rotation
On Load Data
Voltage
Hz
Torque
Speed
Current
Output
Eff.
HC7630
220
50
CCW
0.55Ncm
14000RPM
0.81A
95W
53.3%

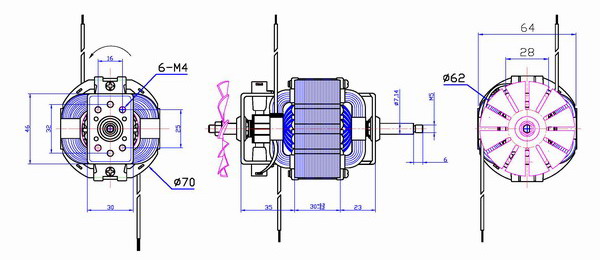

Outline Diagram

Performance Curve
HC7630
