63 Series - CK6325M22
  • Electrical type: AC 230V/50Hz single phase
  • Appliance: coffee maker
  • Construction: Universal
  • Rotation: Clockwise
  • Thermal protection: 105/95/85 Degree
  • Insulating class: B
  • Shaft: stainless steel #470

Model No.
Rated Power Supply
Rotation
On Load Data
Voltage
Hz
Torque
Speed
Current
Output
Eff.
ARC6325M22
220
50
CCW
0.65Ncm
17500RPM
0.66A
70W
53.3%
ARC6325M11
110
60
CCW
0.65Ncm
15500RPM
1.25A
68W
55.6%

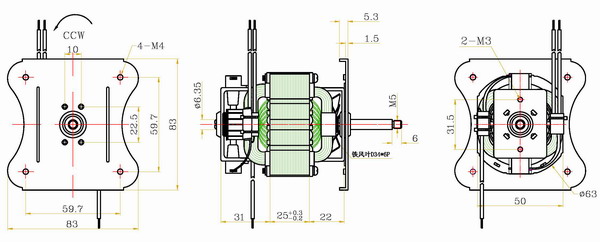

Outline Diagram

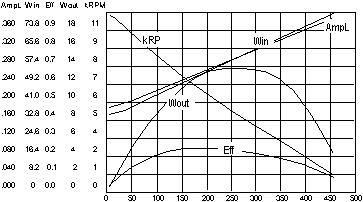

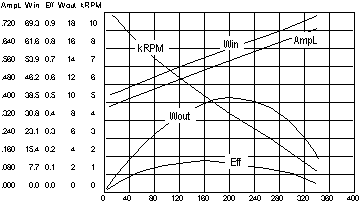

Performance Curve
ARC6325M11
ARC6325M22
